Configuration
Référence configurée : RGIC-35-12-O-S-M1-LX-J0-F0
🔒 Connectez-vous pour connaître les prix.
Connectez-vous ou demandez un compte pour voir le tarif et commander.
🚚 Frais de port : 20,00 € HT par commande, livraison offerte à partir de 1 500,00 € HT.
| Force de serrage (par doigt) | 13~35 N |
|---|---|
| Recommended workpiece weight(Fingertip included) | 0.5 kg |
| Course | 12 mm |
| Temps d'ouverture / fermeture | 0.5 s/0.4 s |
| Répétabilité (position) | ± 0.02 mm |
| Rated torque | 0.2 N·m |
| Peak torque | 0.5 N·m |
| Rotary range | Infinite Rotating |
| Max. rotation speed | 2160 °/s |
| Repeat accuracy (swiveling) | ± 0.05 ° |
| Poids | 0.64 kg |
| Dimensions | 165 mm x 53 mm x 34 mm Rotaty Diameter:33 mm |
| Interface de communication | 2 inputs 2 outputs |
| Tension nominale | 24 V DC ± 10% |
| Courant | 1.7 A(Rated)/ 2.5 A(Peak) |
| Puissance nominale | 40.8 W |
| Indice de protection | IP 40 |
| Environnement recommandé | 0~40°C, under 85% RH |
| Certifications | CE, FCC, RoHS |
| Charge verticale admissible (Fz) | 100 N |
| Moment admissible (Mx) | 1.5 N·m |
| Moment admissible (My) | 1.1 N·m |
| Moment admissible (Mz) | 2.1 N·m |

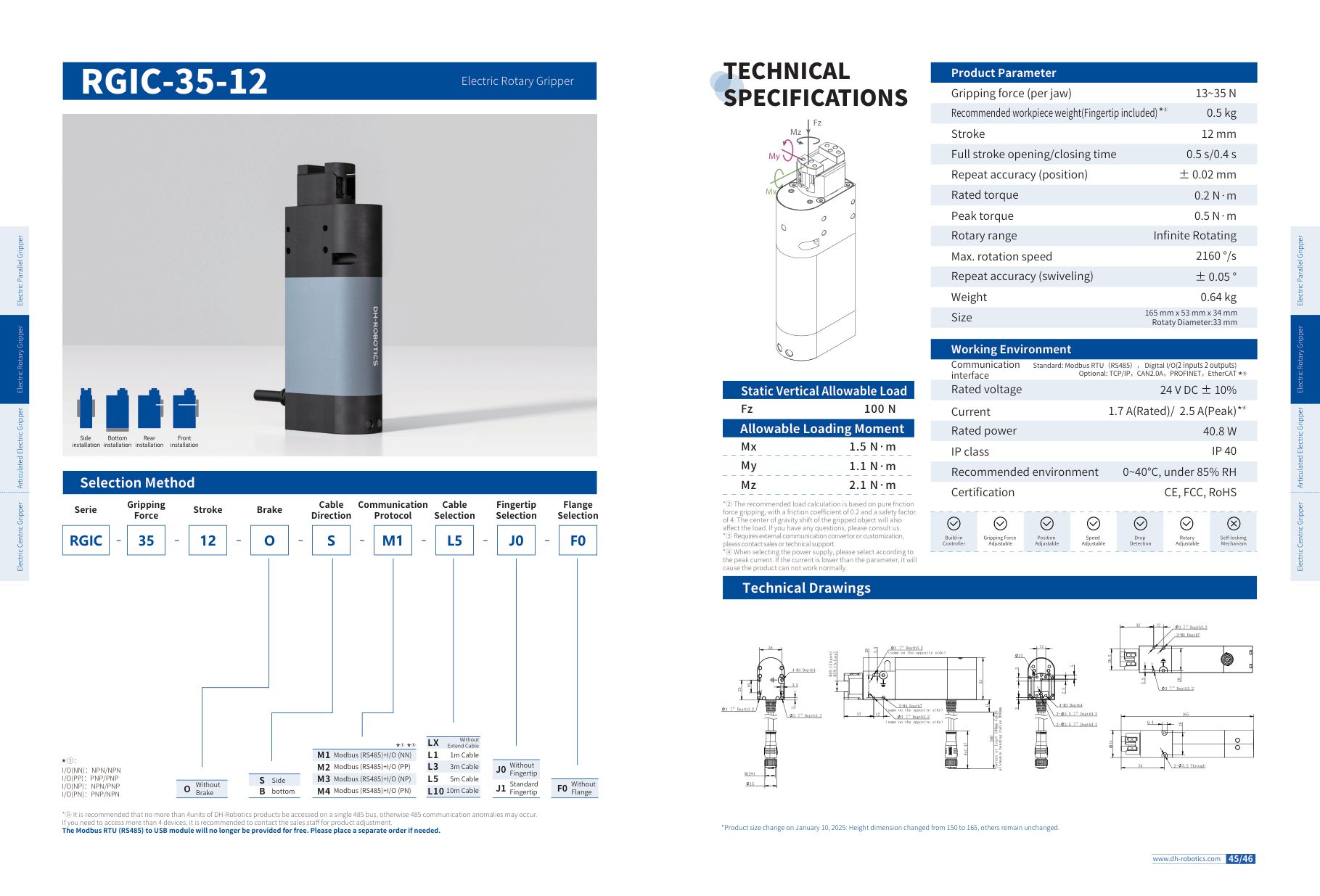

Cliquez sur la fiche pour l'ouvrir en grand (PDF).
