Configuration
Référence configurée : DH-5-L-6-11-N-M3-C0-L3-Z0
🔒 Connectez-vous pour connaître les prix.
Connectez-vous ou demandez un compte pour voir le tarif et commander.
🚚 Frais de port : 20,00 € HT par commande, livraison offerte à partir de 1 500,00 € HT.
| Total degrees of freedom | 11 |
|---|---|
| Active degree of freedom | 6 |
| Working speed | 0.8 s |
| Four-finger bending angle | 83°+87° |
| Thumb bending angle | 38°+7° |
| Thumb lateral swing angle | 85° |
| Single fingertip force | 25 N |
| Recommended maximum friction load | 2 kg |
| Recommended maximum structural lifting load | 4 kg |
| Hand grip strength | 80 N |
| Lifting load | 10 kg |
| Poids | 790 g |
| Sensors | Multi-point Tactile Sensing (Optional) |
| Safety features | Anti-collision Buffering for Inward Grasping |
| Entraînement | Coreless motor + planetary reducer + ball screw + linkage |
| Dimensions | 236 mm116 mm96 mm |
| Interface de communication | Modbus-RTU/Custom communication protocol over RS485 |
| Tension nominale | 24 V DC ± 10% |

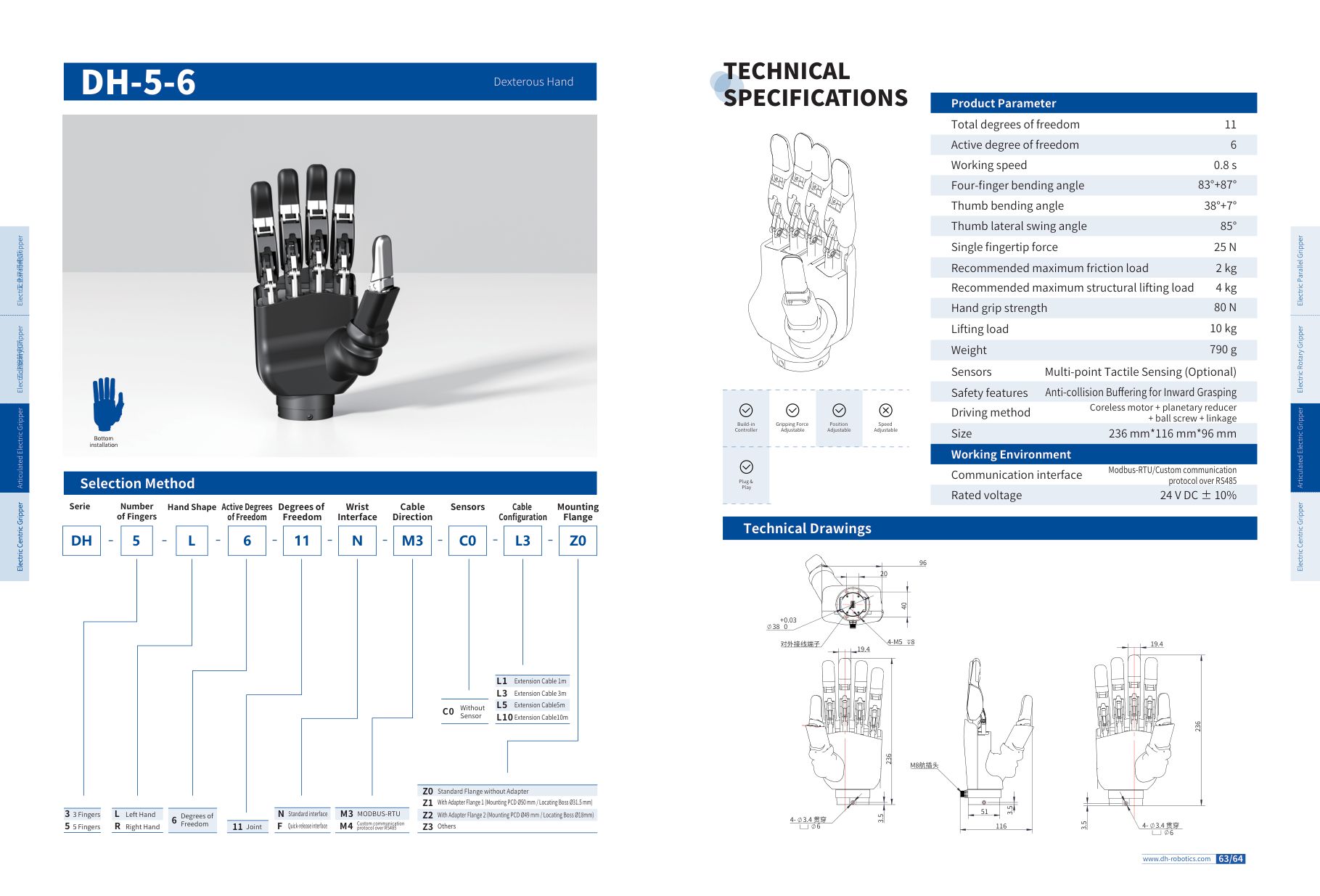

Cliquez sur la fiche pour l'ouvrir en grand (PDF).
